Getting Started: Writing Segments V2 Logic

IN THIS ARTICLE

Learn how to access the Formula Composer and write your first basic formula to filter your advertising data.

CONTENTS

This guide walks you through writing a basic Segment using the V2 Logic syntax. Before starting, you may want to review the Core Concepts & Definitions.

Writing Your First Segment

Let's filter for Targets that have good click-through rates (ctr) but potentially high acos, and create a Custom Property for their Revenue Per Click (RPC).

1. Set the Source to Targeting.

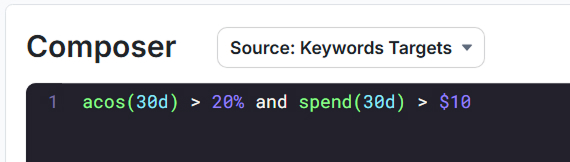

Example of a Targeting-sourced custom property

2. In the Editor, type:

// Filter for active keywords with clicks but no orders in the last 14 days
clicks(14d) > 5
and match type = "broad"
and orders(14d) = 0
and state = "effectively enabled"

3. Breakdown:

  • clicks(14d) > 5: This checks if the target has received more than 5 clicks in the last 14 days. Since clicks is a performance metric measured over-time, it's a a time-based property and requires a time-period in parentheses following the property.
  • and orders(14d) = 0: This adds the condition that the target must have resulted in zero orders during that same 14-day period. This is also a time-based property.
  • and match type = "broad": This adds the condition that the targets must be a broad-match target. Since match type isn't measured over time and only looks at the current attributes of a property, it's a static property and doesn't require a time-period.
  • and state = "effectively enabled": This ensures we only look at targets that are currently enabled, and the ad group and campaign they're in are also enabled. This is also a static property.
  • This whole expression is the Formula Expression that filters the Targeting dataset.

Validating Your Syntax

  • Formula is valid: Looks good!
  • Parsing Error / Other Errors: Check for typos (like c1icks instead of clicks), mismatched parentheses (), missing semicolons ; after let statements, using incorrect operators for the data type, or forgetting time periods on time-based properties. Refer to the Syntax Reference and Error Handling.

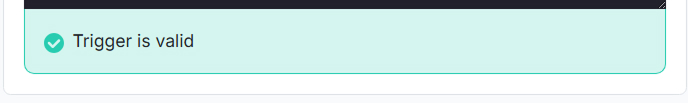

Example of a valid segment trigger
Example of a syntax parsing error message

Saving and Next Steps

Once valid:

  • Preview the Segment results by refreshing the filtered results and clicking the drop down.
  • Configure the Workflow by selecting an action and schedule.
  • Enable the Segment using the 'Enabled' toggle in the toolbar, allowing the Segment to run using your selected schedule and actions.
  • Save the Segment. Remember, defining an Action/Schedule is currently required. See Workflows & Actions.
